Tools and accessories Fast work progress with electrohydraulics
Approved pressing operations are created with the Geberit pressing jaws, pressing collars and adapter jaws. These tools are used as the basis for system approvals.
Geberit pressing tools
- Compact and lightweight with high performance
- Also suitable for restricted construction situations

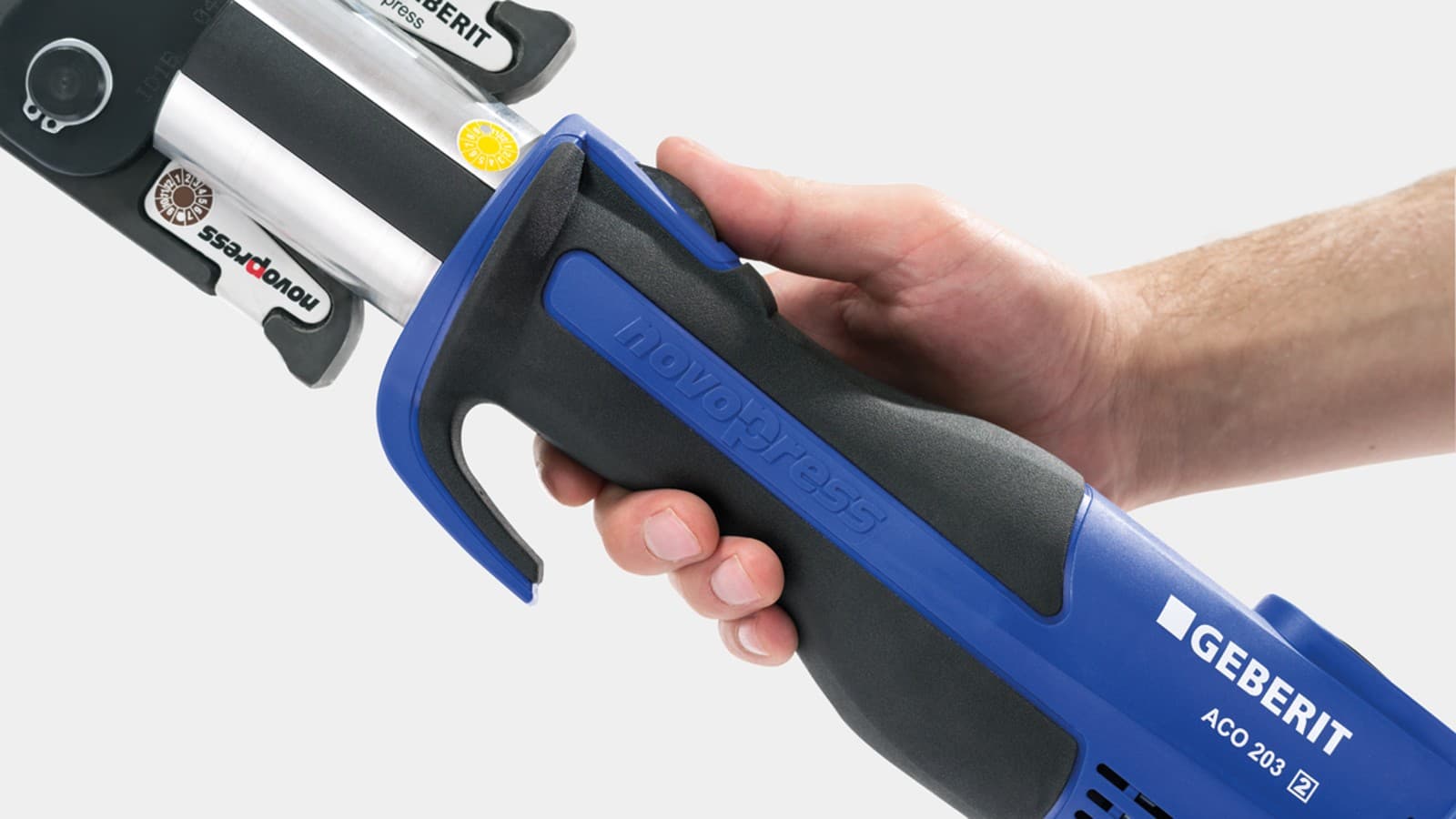

- Slim, non-slip handle for reliable handling
- Electrohydraulic drive

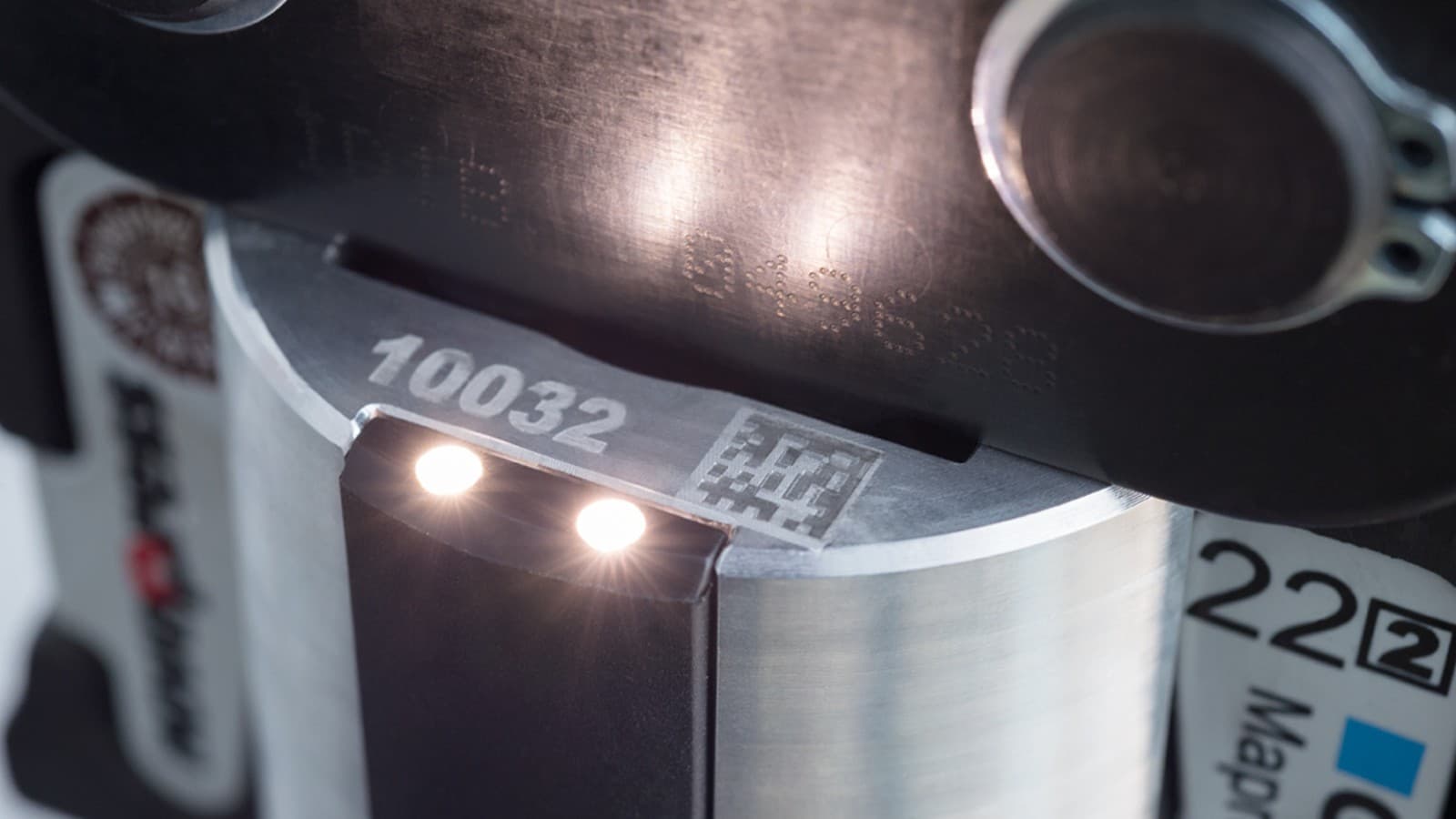

- Good visibility in dark corners thanks to integrated LEDs (Geberit pressing tools ACO 203plus / ECO 203)
- Easy maintenance thanks to the brushless motor (Geberit pressing tools ACO 203plus)
Overview of the Geberit pressing tools
| Pressing tool | Geberit Mepla | Geberit Mapress | ||||
|---|---|---|---|---|---|---|
| Geberit Mepla hand-operated pressing plier | - | H | <1.7 kg | 16-26 | Can be used without pressing jaws | |
| ACO 103plus | [1] | A | 1.7 kg | 16-40 | 12-35 | With Bluetooth® interface for the NovoCheck app |
| ACO 203plus | [2] | A | 2.8 kg | 16-75 | 12-66.7 | LED pressing point light With Bluetooth® interface for the NovoCheck app |
| ACO 203 XLplus | [2XL] | A | 3.8 kg | 16-75 | 12-108 | LED pressing point light With Bluetooth® interface for the NovoCheck app |
| ECO 203 | [2] | N | 3.2 kg | 16-75 | 12-66.7 | LED pressing point light |
| MFP 2 | [2] | H | 4.5 kg | 16-75 | 12-54 | |
| ECO 301 | [3] | N | 5.0 kg | 12-108 | ||
| HCPS* | [3] | N | 14.2 kg | 76.1-108 | For VDS-compliant systems 108 without preliminary pressing |
Legend:
H = handheld equipment; A = with rechargeable battery; N = with mains cable
x kg: Weight of the handheld equipment including rechargeable battery without pressing tool
* HCPS is delivered with its own pressing jaws which are not compatible with other devices

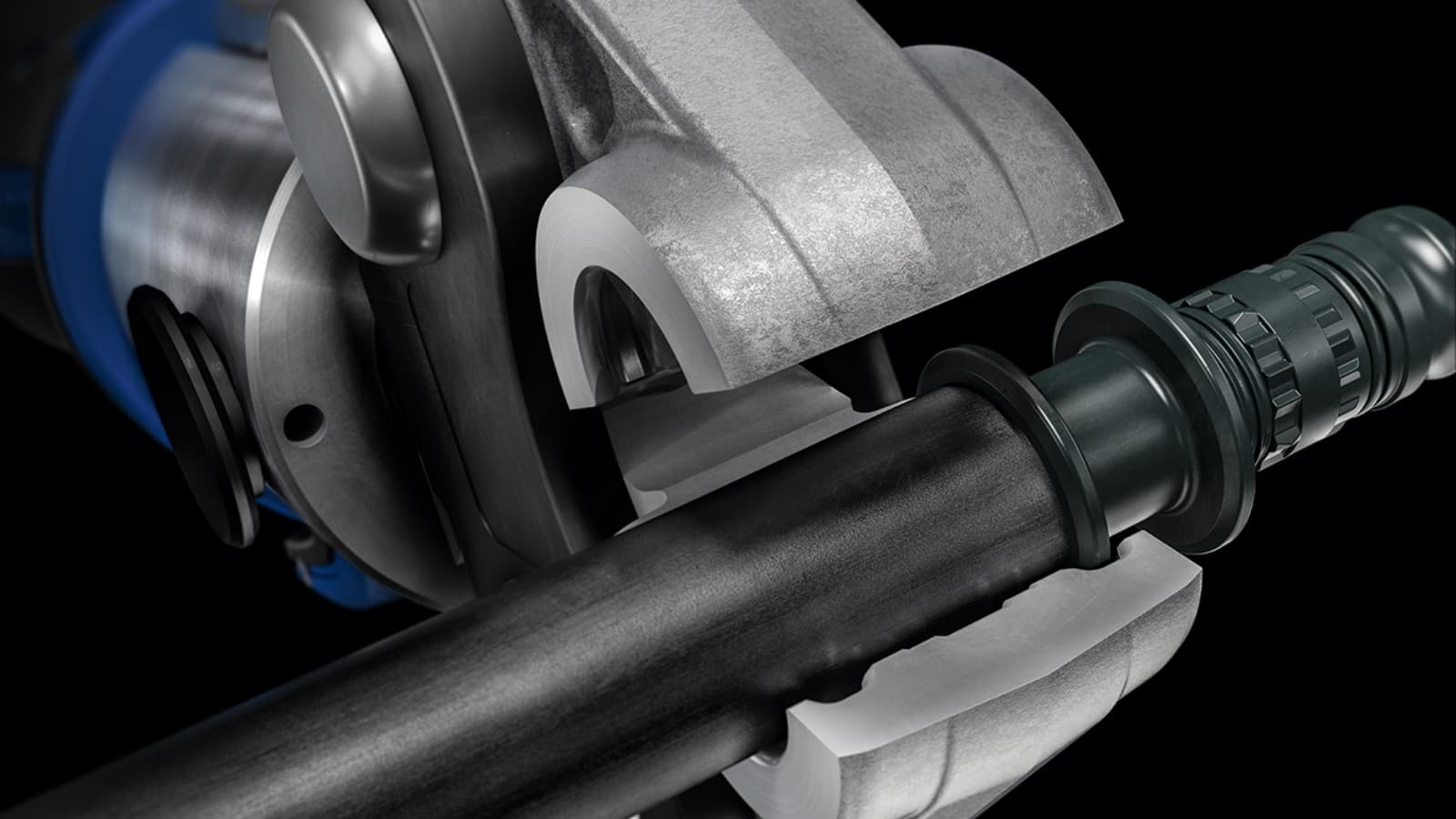

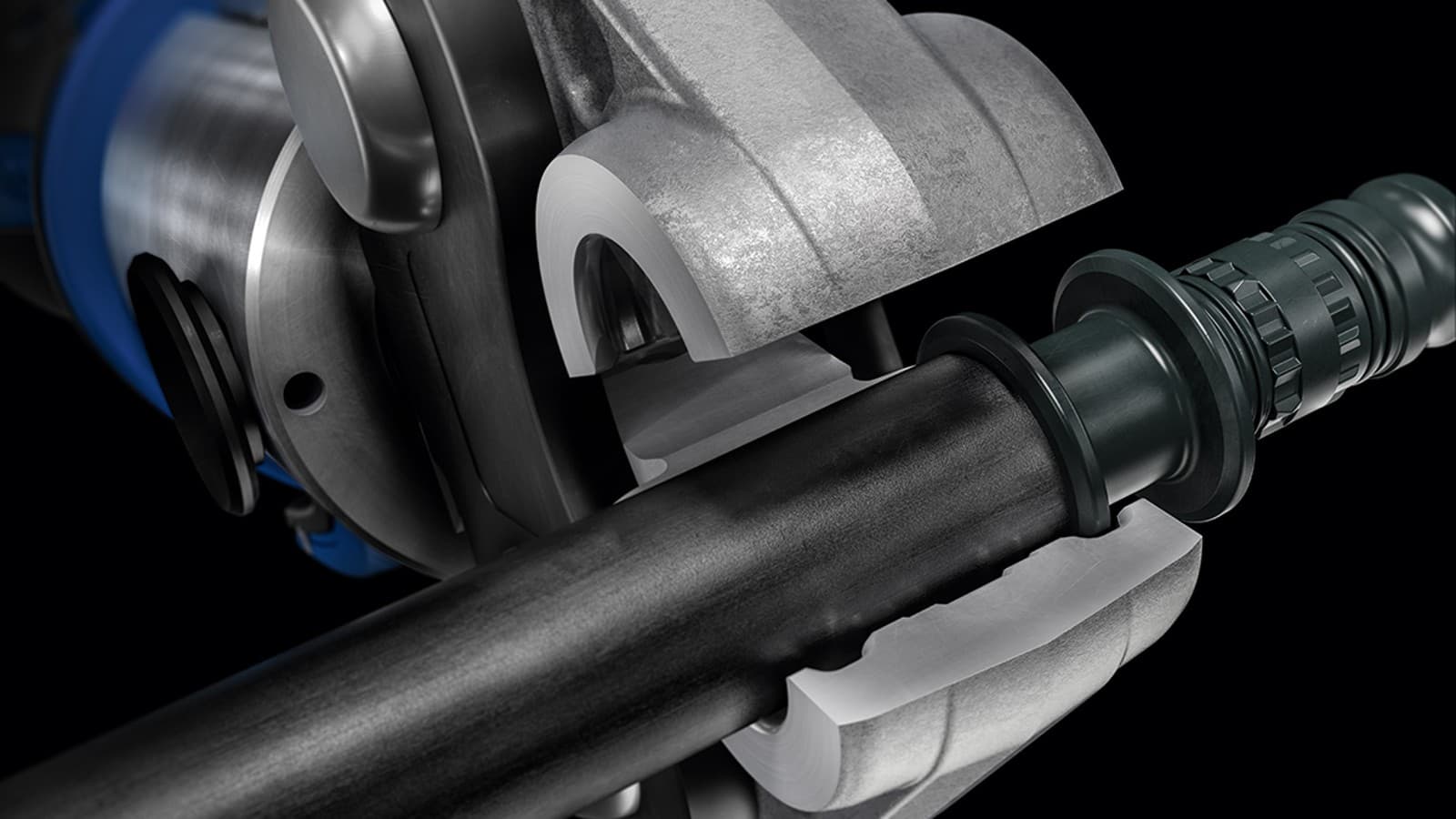

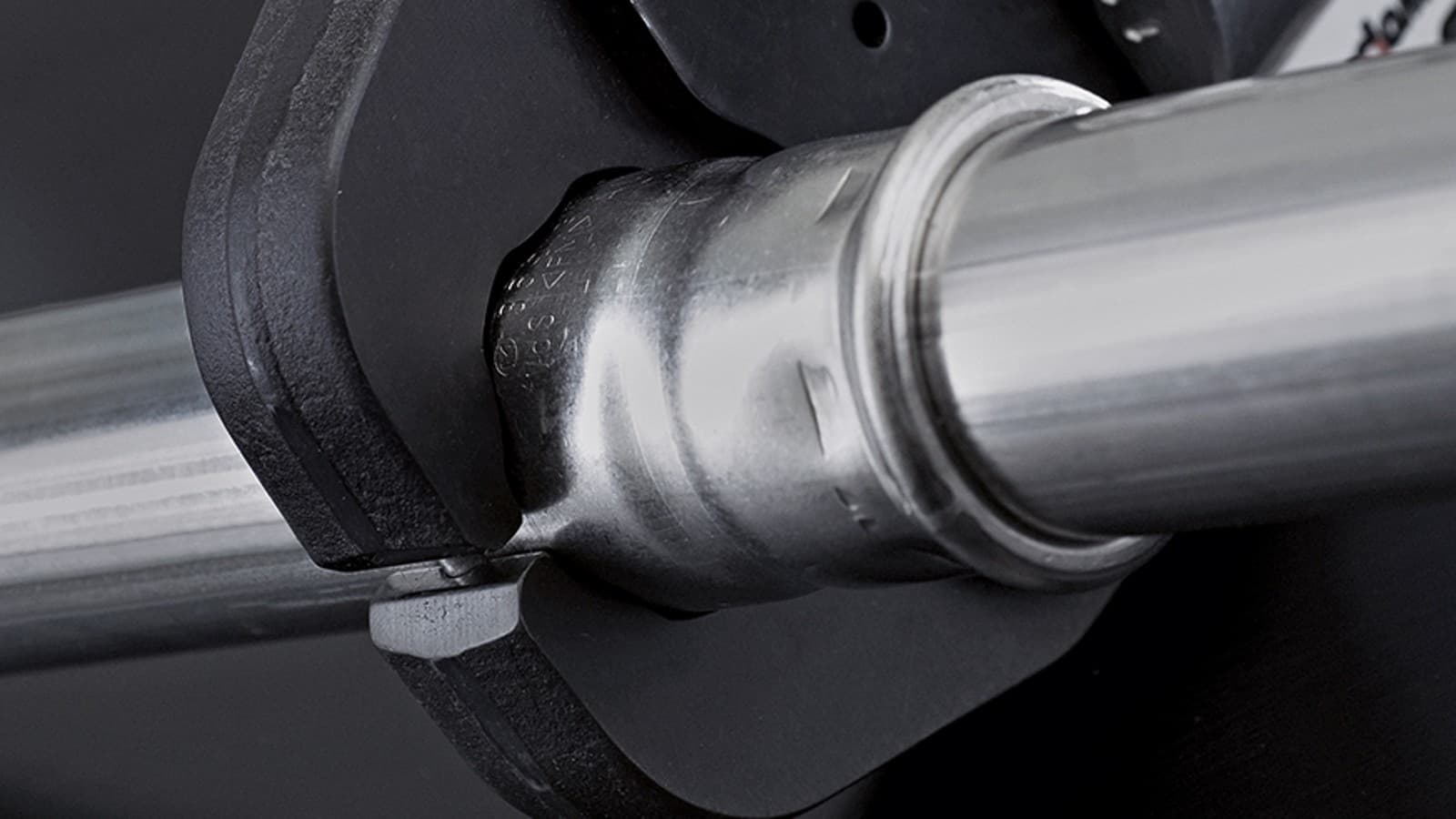

Geberit pressing jaws
The new generation of Geberit pressing jaws:
- Service-free throughout the entire service life
- Can be tested with the Geberit PowerTest
- Available for Geberit Mepla and Geberit Mapress [1] and [2]
The Geberit pressing jaws:
- High-quality
- Durable
- For dimensions up to 35 mm for metal pipes or up to 50 mm for multilayer pipes
- For compatibility classes [1], [2] and [3]
- Available for Geberit Mepla [1] and Geberit Mapress [1], [2] and [3]
- Geberit pressing collars are used for larger dimensions
Geberit pressing collars
- Suitable for Geberit Mepla and Geberit Mapress
- Small, lightweight and robust

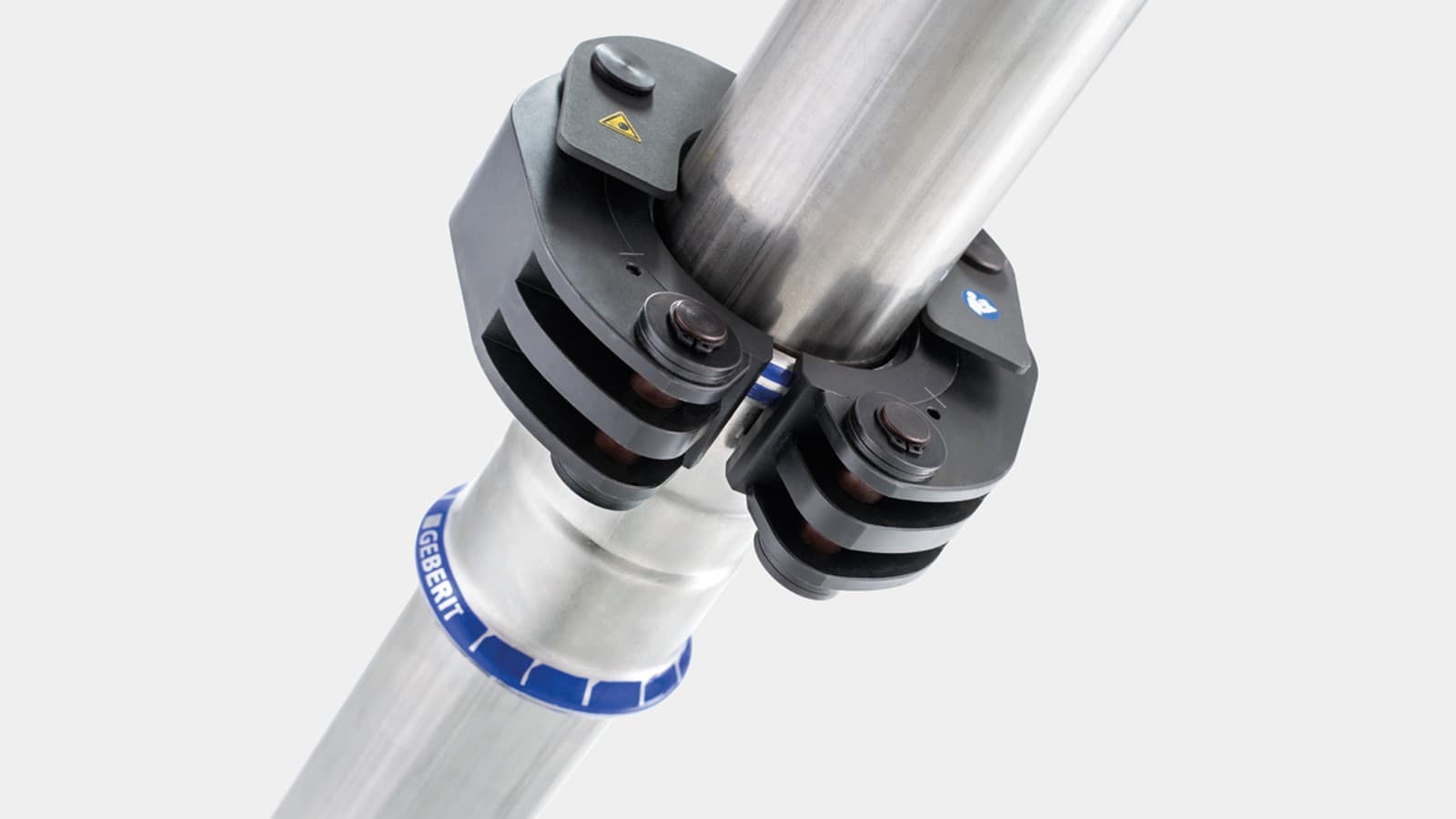

- Easy handling with integrated snap mechanism which holds the Geberit pressing collar on the fitting
- For dimensions from 35 mm for metal pipes or from 63 mm for multilayer pipes

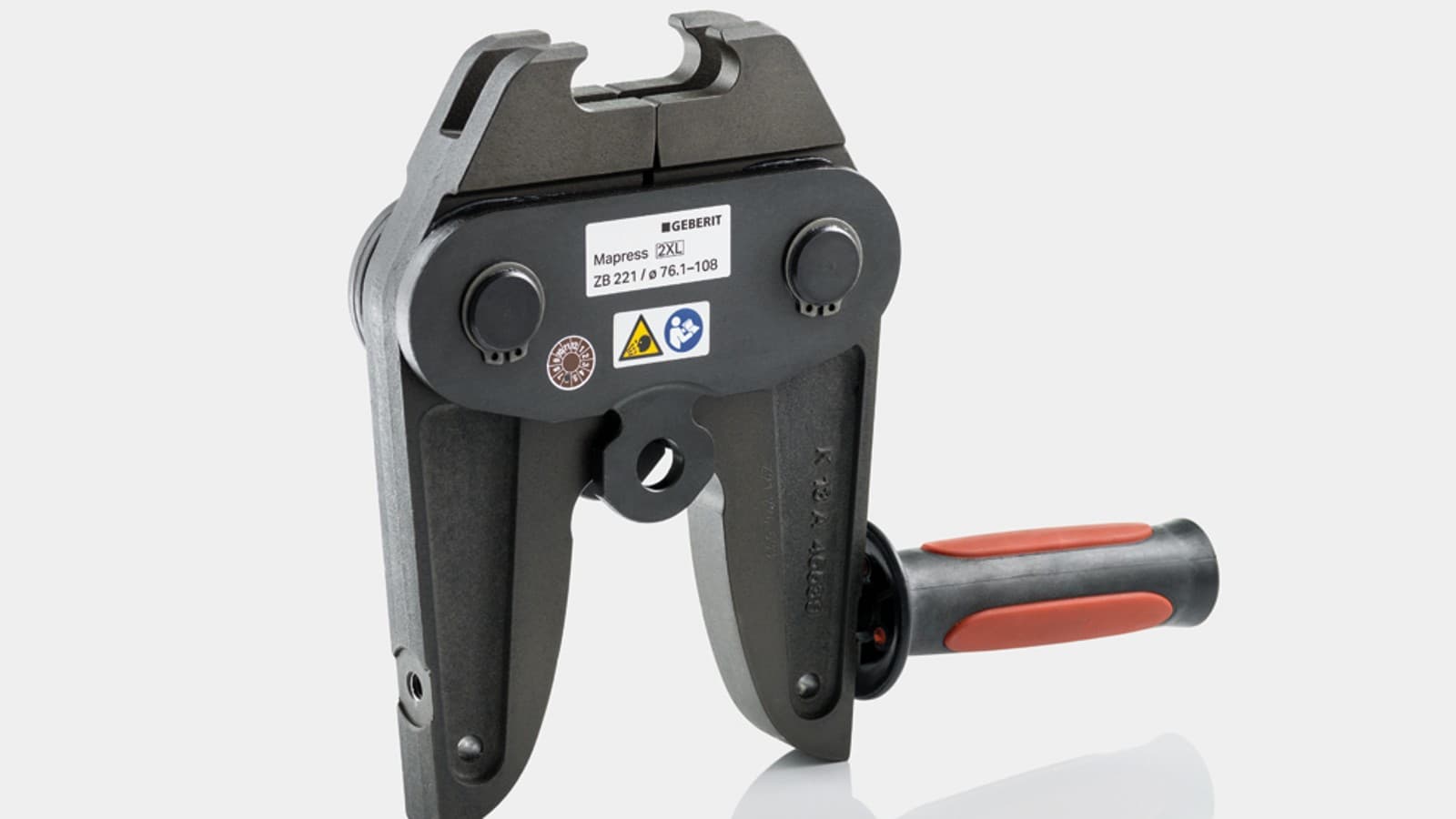

Geberit adapter jaws for use with the Geberit pressing collars
| Adapter jaw | Dimensions | System | |
|---|---|---|---|
| ZB203 | [2] | 63, 75 35, 42, 54, 66.7 | Geberit Mepla Geberit Mapress |
| ZB221 | [2XL] | 76.1, 88.9, 108 (1) | Geberit Mapress |
| ZB222 | [2XL] | 108 (2) | Geberit Mapress |
| ZB303 | [3] | 35, 42, 54 | Geberit Mapress |
| ZB323 | [3] | 76.1, 88.9, 108 (1) | Geberit Mapress |
| ZB324 | [3] | 108 (2) | Geberit Mapress |
Legend: [n] compatibility; (1) preliminary pressing; (2) final press
Additional tools
As well as the Geberit pressing tools, Geberit offers a multitude of high-quality tools for pipe work:

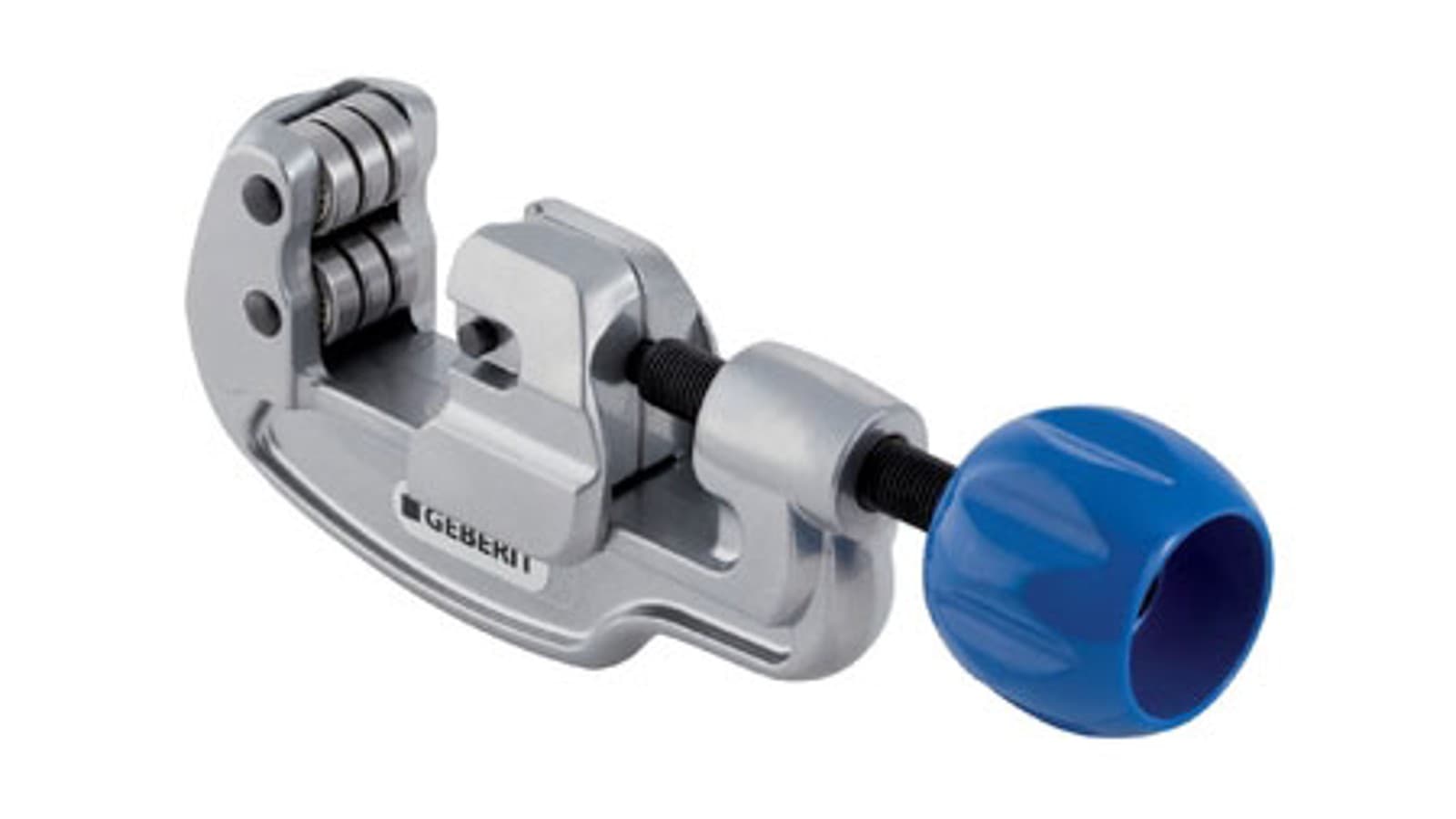

- Geberit pipe cutter
- Geberit pipe deburrer
- Geberit stripping tools
- Geberit pressure test plugs
- Geberit bending tools
New pressing tools and rechargeable batteries
New Geberit pressing tools ACO 103plus, ACO 203plus and ACO 203XLplus with Bluetooth®
New rechargeable batteries with 5 Ah for the Geberit pressing tools ACO 203Plus and ACO 203XL for three more pressings up to a dimension of d108 in comparison to rechargeable batteries with 1.8 Ah.
The maintenance-free pressing jaws are available from 2018 for all Geberit pressing systems in supply piping systems with compatibilities [1] and [2].
