Space-saving drainage with Geberit PE SuperTube New Alamein City in El Alamein (EG)
New Alamein City is one of Egypt’s most ambitious urban development projects, and is located on the Mediterranean coast.
The city stretches over 200 square kilometres and is home to more than three million inhabitants. The project consists of high-rise residential buildings, luxury hotels, cultural facilities and public infrastructure that will transform the region into a modern urban centre.
With advanced utility networks, sustainable planning and a focus on tourism, New Alamein City combines coastal living with cutting-edge design.
The Geberit SuperTube technology used in the Alamein Towers met demanding requirements to the complete satisfaction of the client.
Project overview
High requirements for drainage

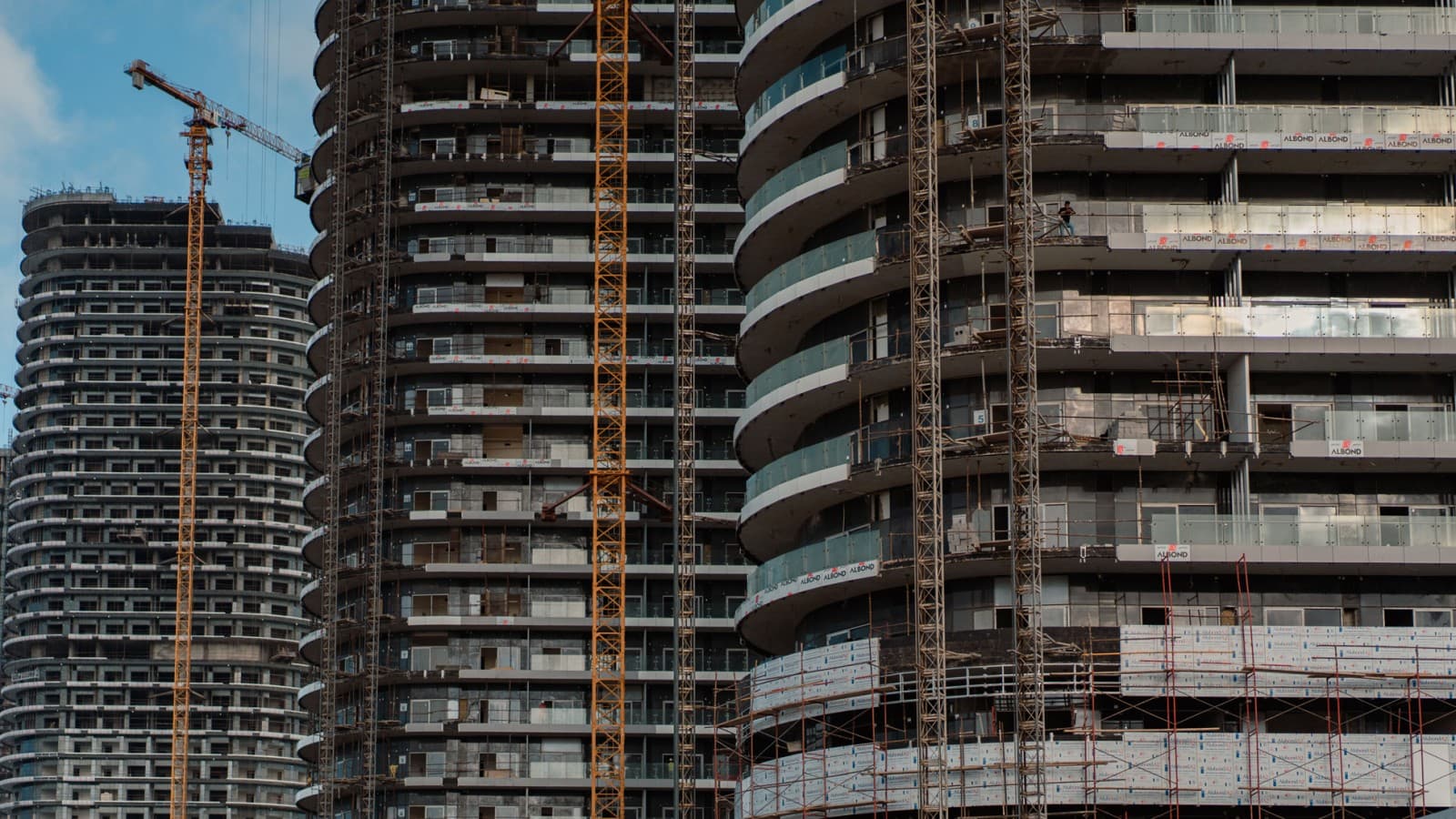

The 18 towers required a high-capacity drainage system in narrow ducts.
SuperTube technology as the solution
Geberit SuperTube saves space in ducts, creating more room for residential and floor space.

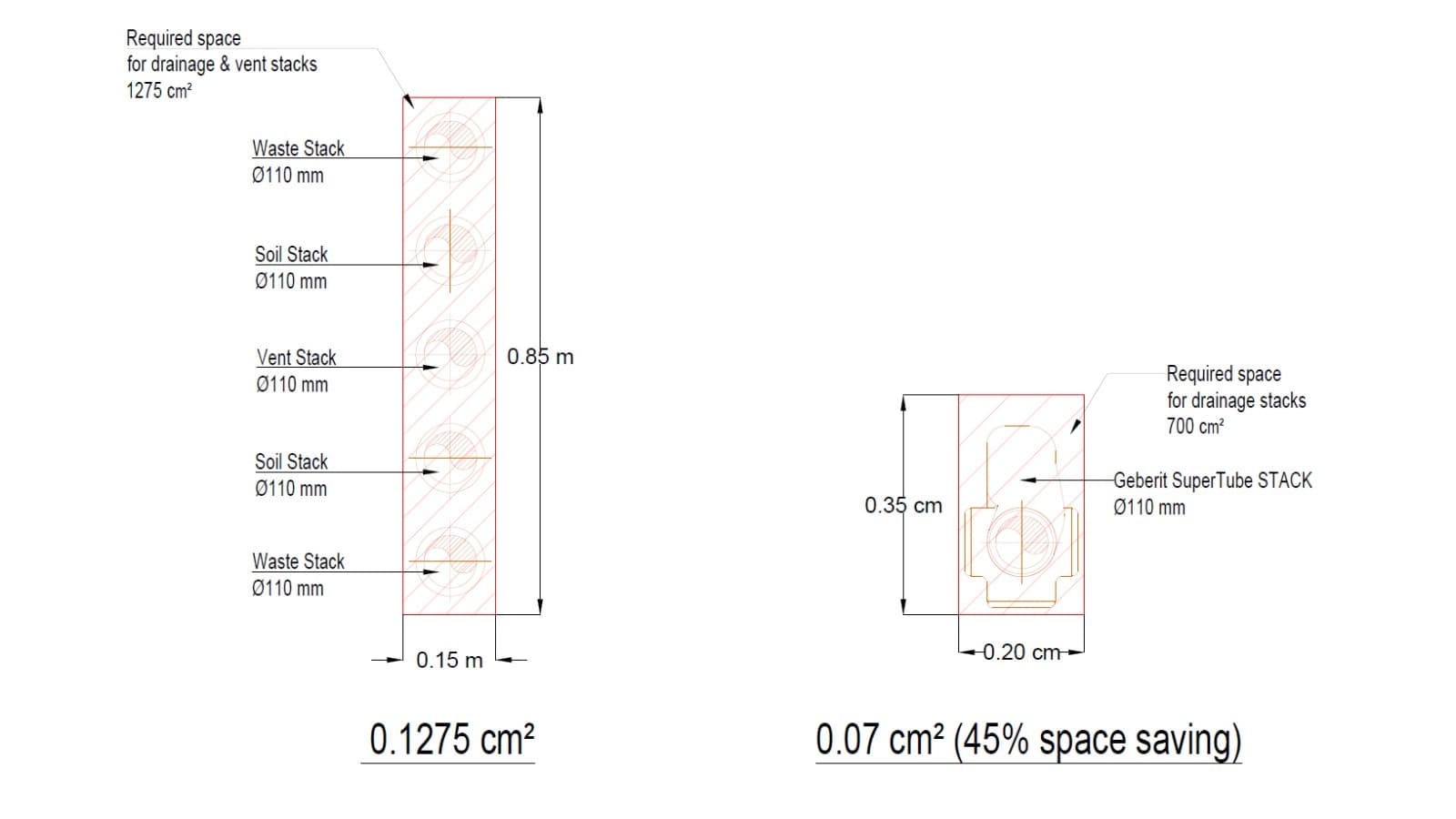

45% space savings for discharge stacks
Thanks to Geberit SuperTube technology, only a third of the discharge stacks originally planned were needed.
50% less installation time
The reduced number of stacks significantly reduced the installation time.
Customer testimonial
“The system requires less space, uses less material and is easy to install, which speeds up the whole process. In short, SuperTube technology makes the work a real pleasure for everyone on the construction site. It’s definitely worth the price because it saves time, space and material.”
Hany Fouad, ORASCOM Project Director
Do you have a similar project? We will find the right solution for you.
The brief Drainage system for small duct sizes
With 18 towers, the New Alamein City project is a gigantic project and had varying requirements in terms of cost and time:
- Rapid project realisation
- Extremely narrow ducts planned
- High quality at a favourable price
- Reliable partner supporting all phases of the project
Meeting these high requirements would have been almost impossible with a conventional drainage system.
The Geberit solution Geberit SuperTube technology

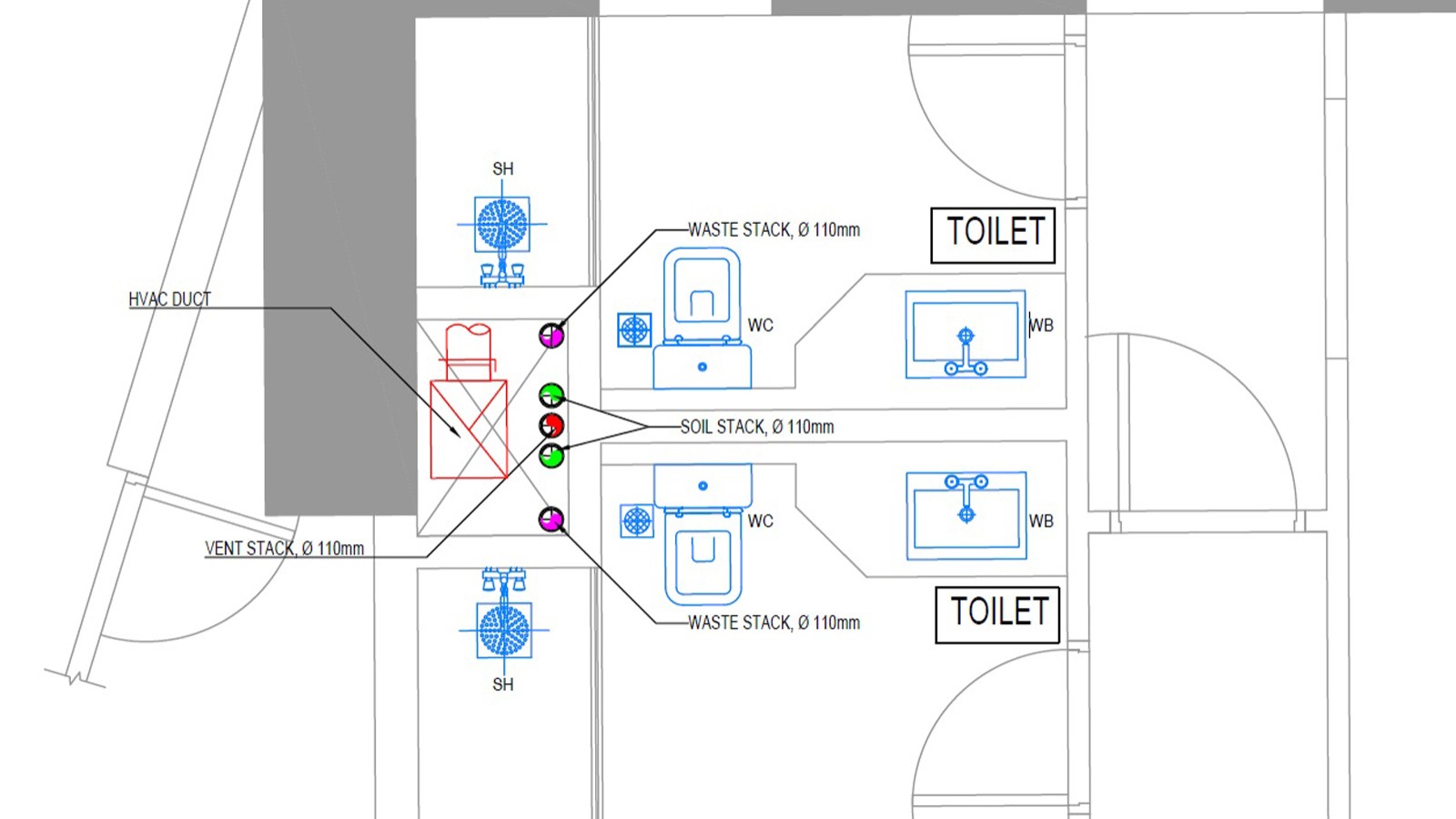

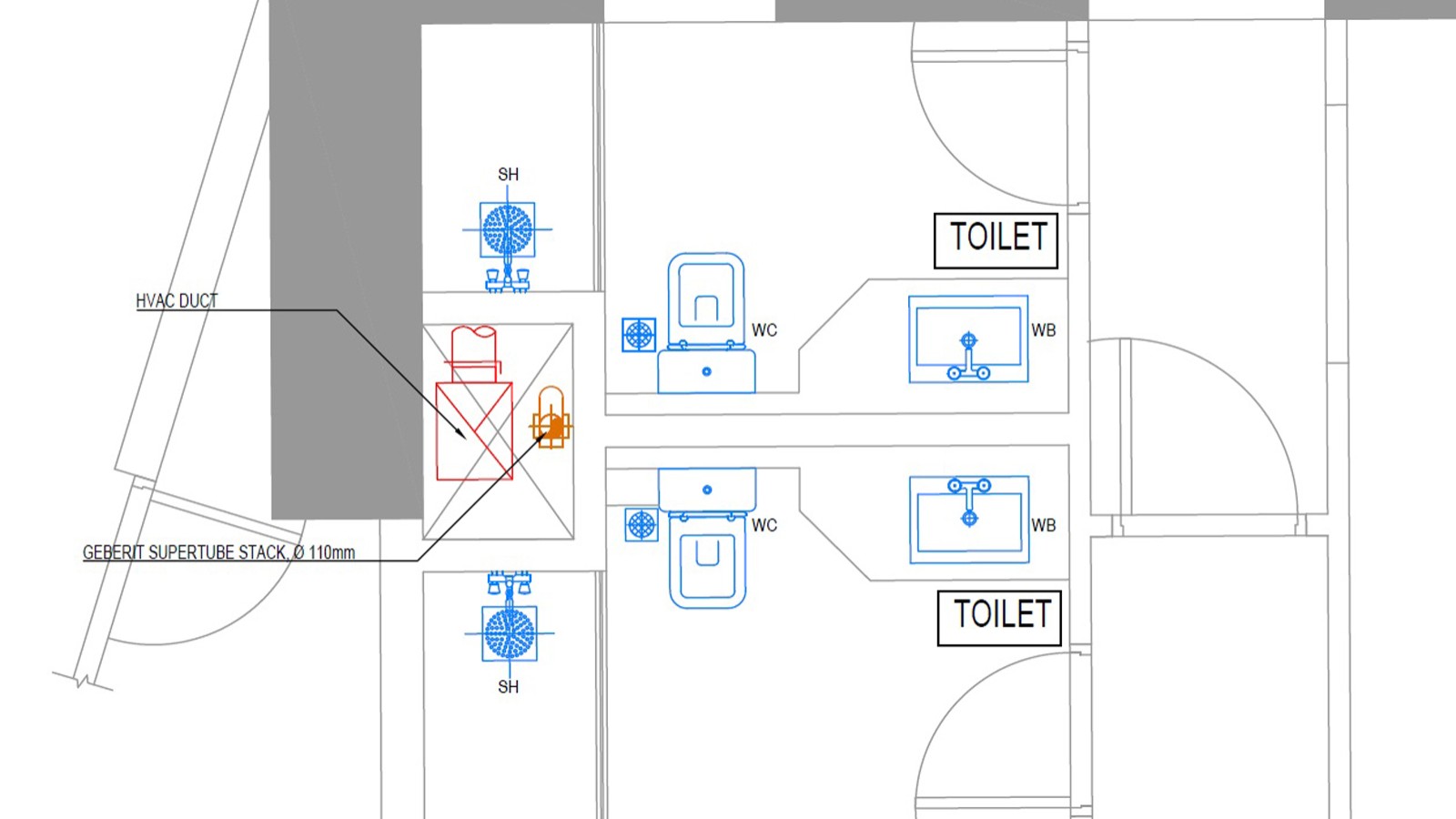

The innovative SuperTube technology from Geberit was able to fulfil these high demands. Thanks to SuperTube, it was possible to switch from a conventional triple stack system to a simpler system. This saved material, costs and space in the ducts.
- Reduction from 162 to 54 discharge stacks
- Around 50% time saving in the installation of discharge stacks
- Total space saving of 210 m² (savings: almost USD 1 million at USD 4,760/m²)
- Up to 34% lower material costs compared to a conventional drainage system
These advantages simplify the installation of the drainage system while also making future maintenance tasks easier.

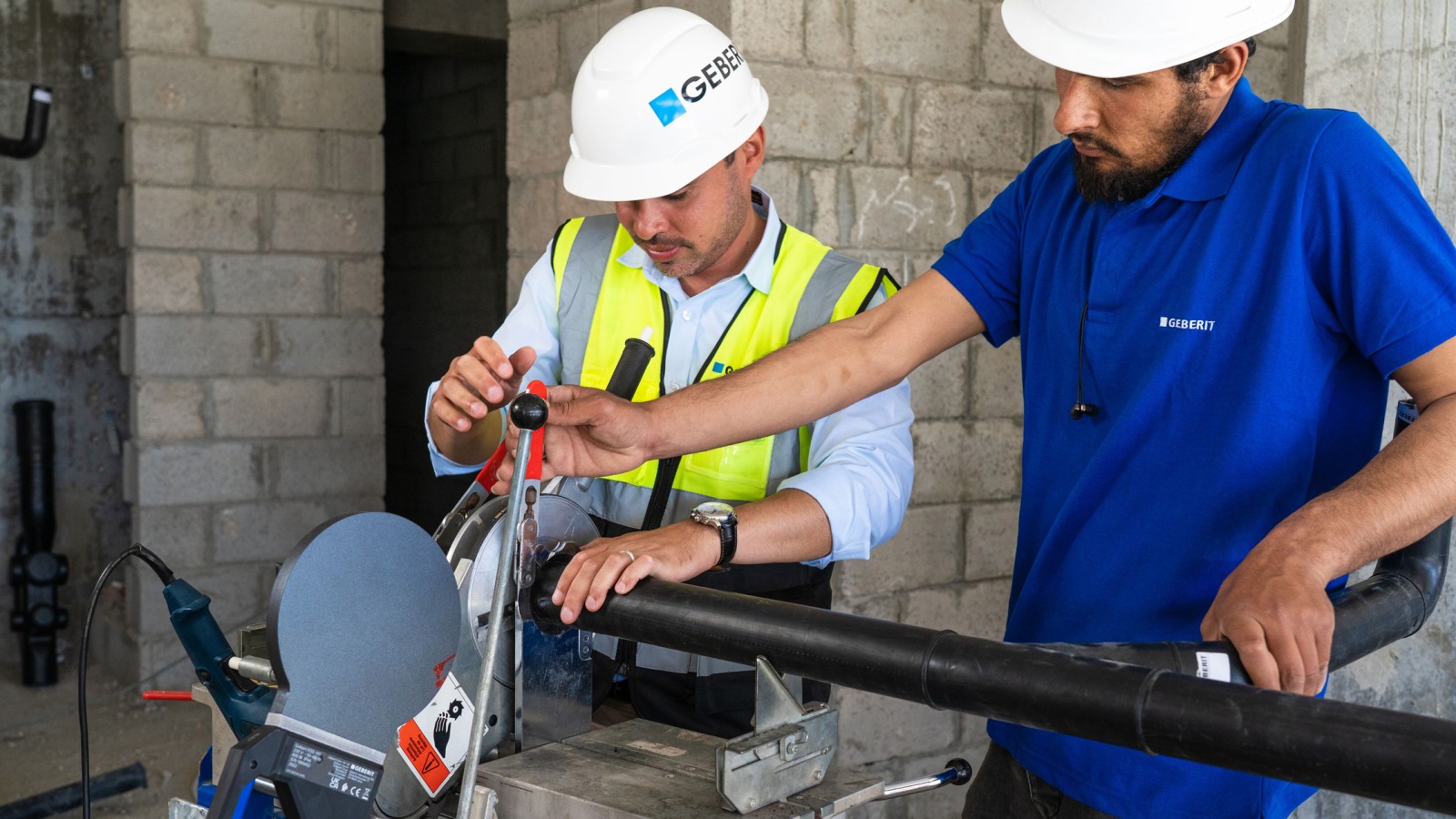

The client appreciated the support from Geberit throughout the entire project – from planning to completion. Geberit contact persons were available on site during the installation.
Facts & figures about the project
Geberit know-how
Geberit products used
- Geberit PE with SuperTube
Geberit PE SuperTube
Geberit PE SuperTube offers space gaining in high-rise buildings. Compared to a conventional system, it provides a high discharge capacity of 12 l/s but with a smaller dimension of d110.
Profile
Profile
- Developer: New Urban Communities Authority
- Architects: Pavillion, Concord, Yasser Beltagy, ECG Consultants
- Interior designers: Pavillion, Concord, Yasser Beltagy, ECG Consultants
- MEP consultants: Shaker, Mito Consultants
- Building contractors: Orascom, Hassan Allam, CCC; Redcon; Dorra, Emco, Arb. contractors and Siac
- Number of towers: 18
- Height: 224 m
- Floors: 32-44
- Bathrooms: 15,000
- Completion: 2023
More customer projects with Geberit SuperTube
28 floors without a secondary ventilation pipe
Geberit Silent-Pro SuperTube was used for the first time in the DS 90 residential high-rise in Vienna, with 29 floors and a six-floor base building. The highly sound-insulated drainage system saves space and is easy to install.
Sobha Hartland, Dubai
Luxury needs space – and SuperTube creates it. With narrow drainage ducts, the developers of Sobha Hartland in Dubai can maximise the available living space. The project is the first in Dubai with SuperTube, which meant that some additional administrative procedures were necessary.
The guardians of Sydney
The densification of Sydney's suburbs begins impressively with the 180 George Towers - and Geberit plays a decisive role.
Discover similar products
Geberit PE
Geberit PE is suitable for a wide range of drainage applications in technical building systems and industry thanks to its shockproof properties and resistance to chemicals.
Geberit SuperTube technology
Our pioneering SuperTube technology saves space in building drainage, makes planning easier than with conventional drainage systems, and creates more residential and floor space.

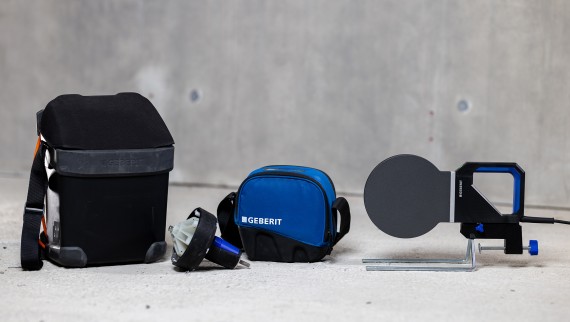

Tools & accessories for drainage systems
