Concealed Cisterns Leakproof and reliable behind the wall
The classic of modern bathroom installation
Geberit concealed cisterns for WCs have been the epitome of reliability, durability and tightness for over 60 years. They form the core of our flush technology and have been installed millions of times around the world.
Spares parts are available for 50 years and backwards compatible to ensure the cisterns can continue to work for years to come.
Concealed cisterns can be installed with various installation systems, including Geberit Duofix, Geberit GIS and Geberit Kombifix. This makes them incredibly versatile and suitable for almost any constructional situation.
They are also easy to maintain, as removing the flush plate provides direct access to the relevant components. Concealed cisterns also lie at the heart of the Geberit WC system, with optimised hydraulics that make them more than 30% quieter in operation.
Why choose a Geberit concealed cistern?
Reliable & leakproof
They set the standard in flush technology and have been installed millions of times.
50 years of spare parts availability
Long-term availability of spare parts and backwards compatibility ensure the cisterns will continue to work for years to come.
Versatile
Suitable for many different applications thanks to their compatibility with different installation systems.
Ultra-quiet filling
More than 30% quieter both when flushing and filling when combined with ceramic pans that have TurboFlush technology and the Type 383 fill valve.
Innovative additional functions
Modern concealed cisterns from Geberit are modular and can be equipped with much more than just a flush function, depending on the model and setup.
Actuator plates for WCs & urinals
Geberit flush plates and cover plates don’t just look great, they also feature versatile functions.
Electrical & water connections built onto the WC
Connections for electricity and water make it easy to retrofit additional comfort functions such as a shower toilet, Geberit DuoFresh odour extraction unit, an orientation light or a hygiene flush unit.
Geberit Hygiene System
The Geberit Hygiene System helps maintain drinking water quality in any installation, regardless of usage frequency.
DuoFresh odour extraction unit
The DuoFresh odour extraction module ensures there is fresh air in the bathroom and increases the level of comfort.
Orientation light
At night, an LED light bar provides discreet, indirect light as soon as someone approaches the WC.
Touchless toilet flushes
Touchless actuator plates flush either automatically or in response to a simple hand gesture. They offer excellent hygiene and are easy to keep clean.
Tested tightness & reliability
Geberit concealed cisterns are made from a single cistern body. The plastic is blown up like a balloon and moulded, rather than being cast. This technique ensures outstanding tightness and high reliability.

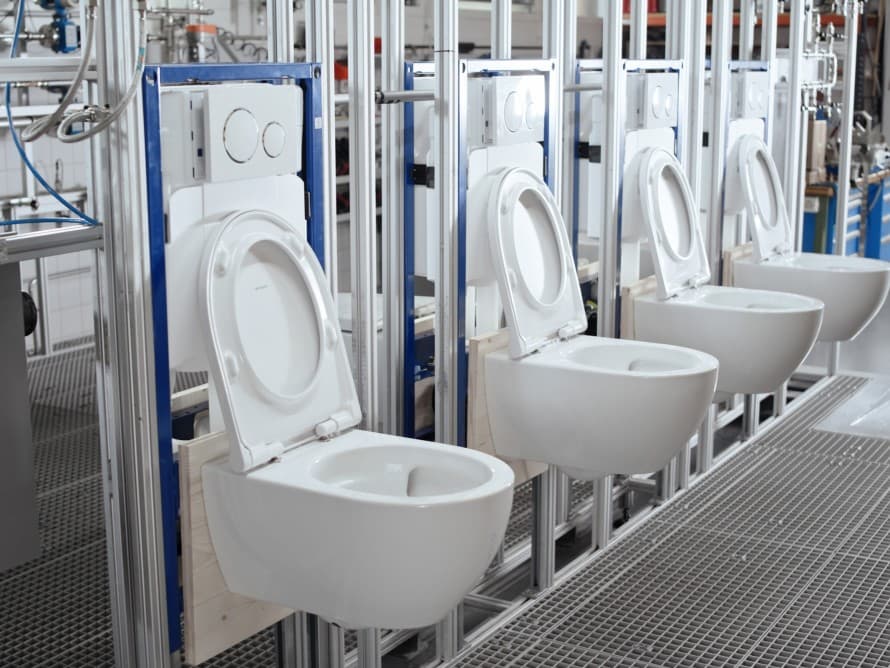

Geberit flushing systems undergo extensive long-term testing, with a minimum of 200,000 flushes and refills. This allows Geberit to simulate 50 years of use within just three months.
The durability tests are performed in our accredited, in-house sanitary technology laboratory (covering around 800 square metres) at our headquarters in Switzerland.
Spares parts availability for 50 years ensures the concealed cisterns can continue to work for years to come. Spare parts availability does not cover specific electronic components of products, such as the Geberit hygiene flush unit or the Geberit DuoFresh WC odour extraction unit.
Concealed cisterns The heart of our WC system
Concealed cisterns are the central element of the Geberit WC system. All components for the WC area – concealed cisterns, ceramic pans and flush plates – are compatible with each other and designed to work together perfectly.
This results in a range of benefits for sanitary professionals, such as guaranteed spare parts availability and tool-free installation that is 40% quicker than with conventional WC suites.
End customers enjoy a flush that is up to 10 times better than conventional toilets, extended return rights and product warranties.
Geberit Sigma & Geberit Omega Concealed cisterns for every constructional situation
A wide selection of installation elements for wall-hung WCs is available to meet a wide range of requirements. The elements are available in three installation heights and allow either front flush actuation or flush actuation from above (for lower installation heights). Geberit flush plates have the same name as their corresponding concealed cistern so you can be sure everything will work together perfectly.

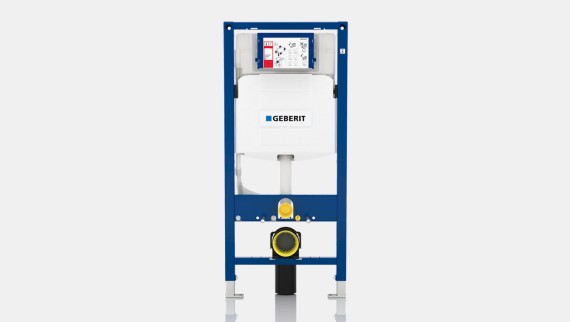

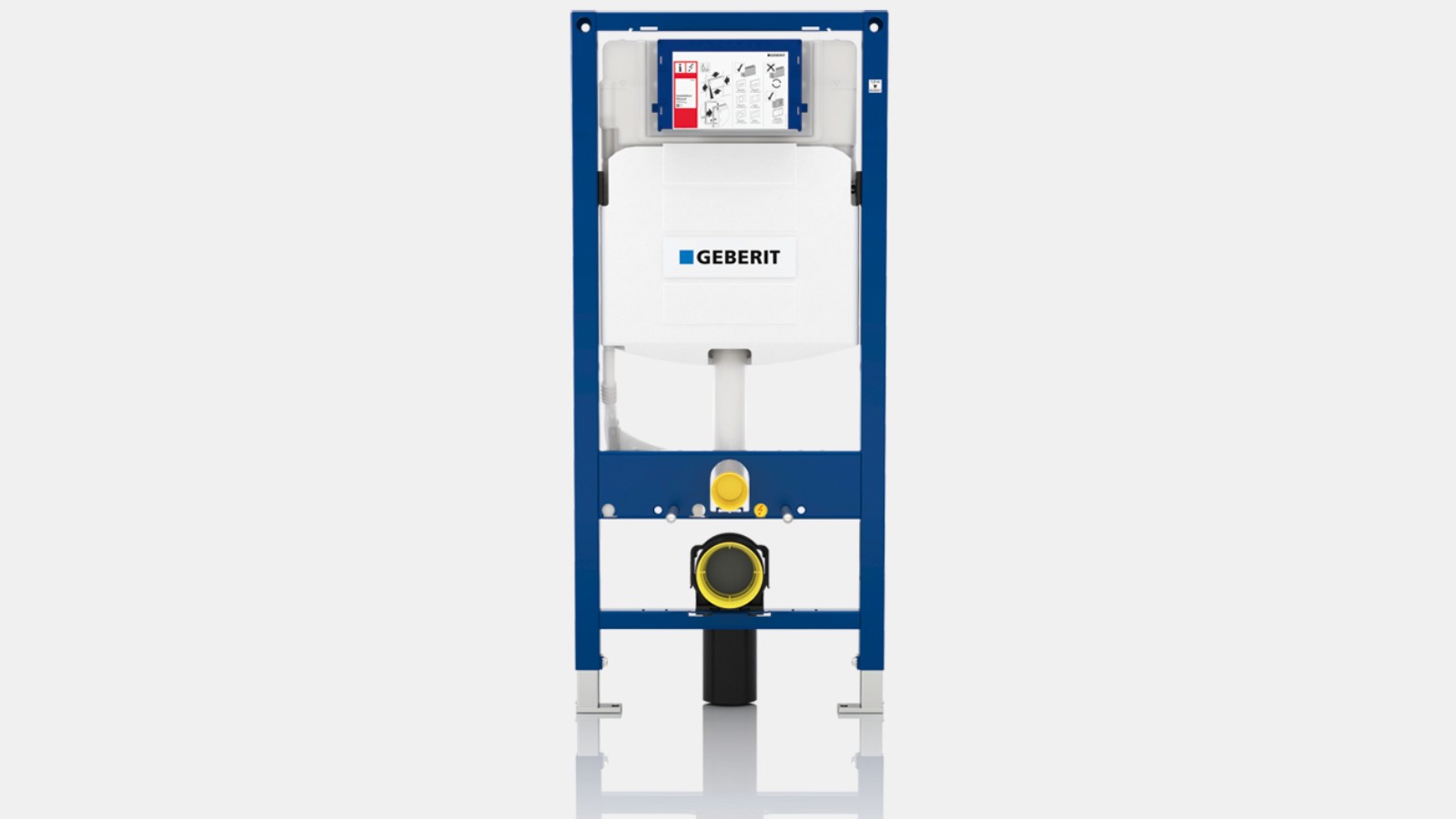

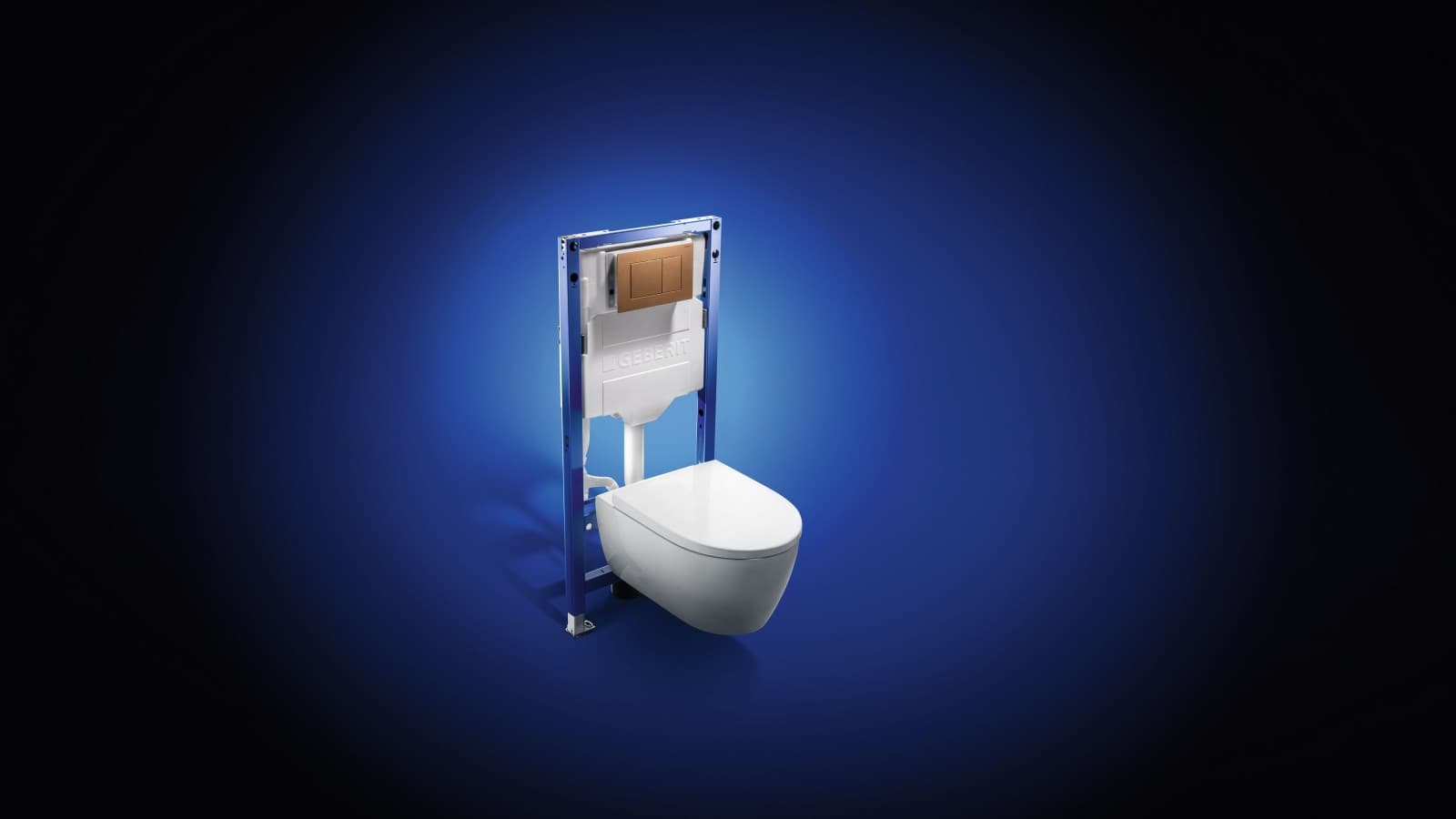

Geberit element for wall-hung WC with Sigma concealed cistern
- Construction height: 112 cm
- Front actuation
- Available for accessible or height-adjustable wall-hung WCs
- Suitable for corner constructions
- Optional odour extraction (recirculation/exhaust)
- Suitable for Geberit remote flush actuation
- With integrated hygiene flush unit (HS30 and HS50)

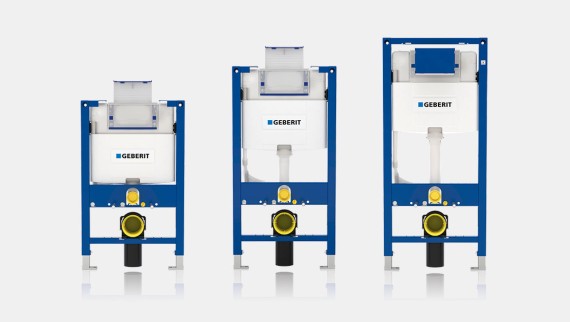

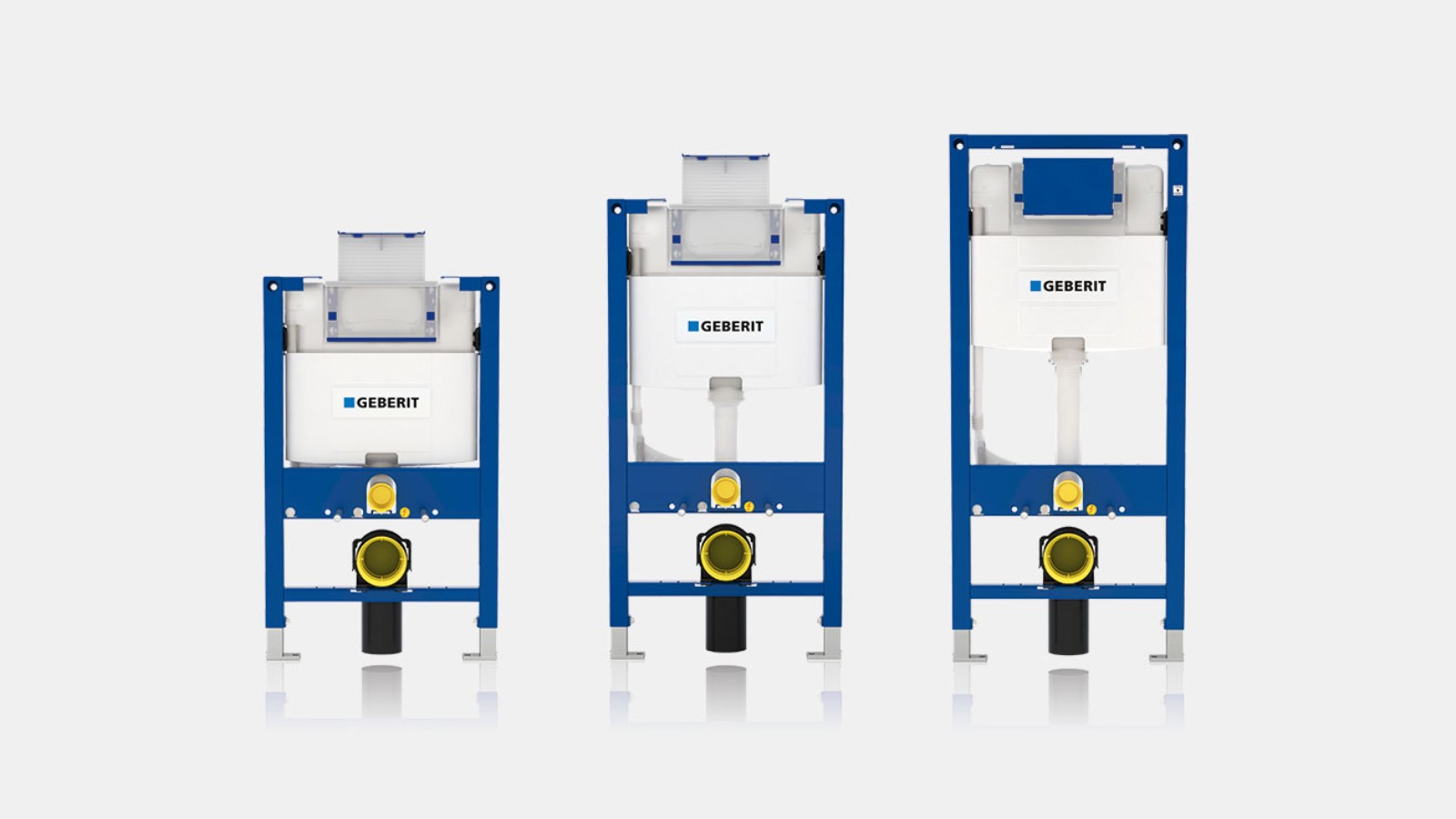

Geberit element for wall-hung WC with Omega concealed cistern
- Three different construction heights for maximum flexibility: 112 cm, 98 cm and 82 cm
- Front actuation
- Top actuation possible for construction heights of 82 cm or 98 cm
- Extra-small flush plates
- Suitable for Geberit remote flush actuation
Geberit elements for wall-hung WCs with Omega concealed cisterns are the ideal choice for lots of installation situations, especially more challenging ones, such as under sloping roofs or windows.
Different construction heights and optional top actuation enable a high level of flexibility during installation.
Very easy to maintain Compact inner workings
Geberit concealed cisterns stand out thanks to how easy they are to service and maintain.
Thanks to the slim and easy-to-install design of the cisterns, the service opening behind the flush plate allows the inner workings, such as the flush and fill valves, to be easily installed or removed on the rare occasions when maintenance is required. It is also easy to adjust the flush volume and performance on the flush valve itself.
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Are you on the lookout for innovative bathroom solutions? Our Geberit team and Dealers will be happy to support you.
Get in Touch With Us
Geberit concealed cistern product range Item, technical information and more
Useful applications
Geberit Pro
Craftsmen can now carry everything Geberit offers in their pocket on their mobile. This is made possible by Geberit Pro for smartphones which assists plumbers with lots of useful information and tools.
Frequently asked questions about Geberit concealed cisterns
Are Geberit concealed cisterns available without the installation element?
Yes, concealed cisterns are also available without the installation element.
However, we recommend using a Geberit Duofix, GIS or Kombifix installation element to ensure safe mounting. These elements are suitable for a wide range of potential applications, construction types and constructional situations – whether solid or drywall construction, renovations or new builds.
Why should I think about the toilet’s electrical and water supply connections at an early stage?

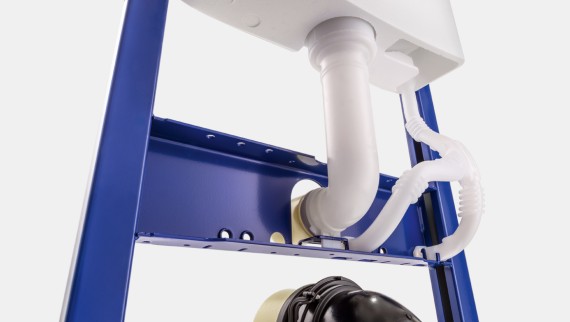

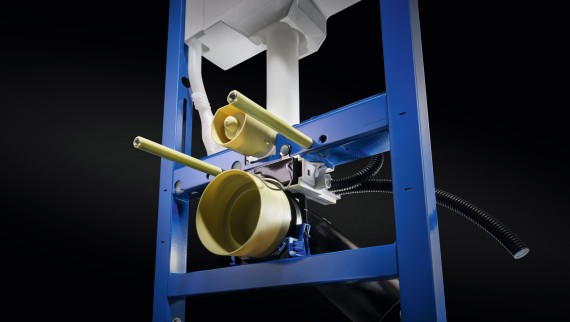

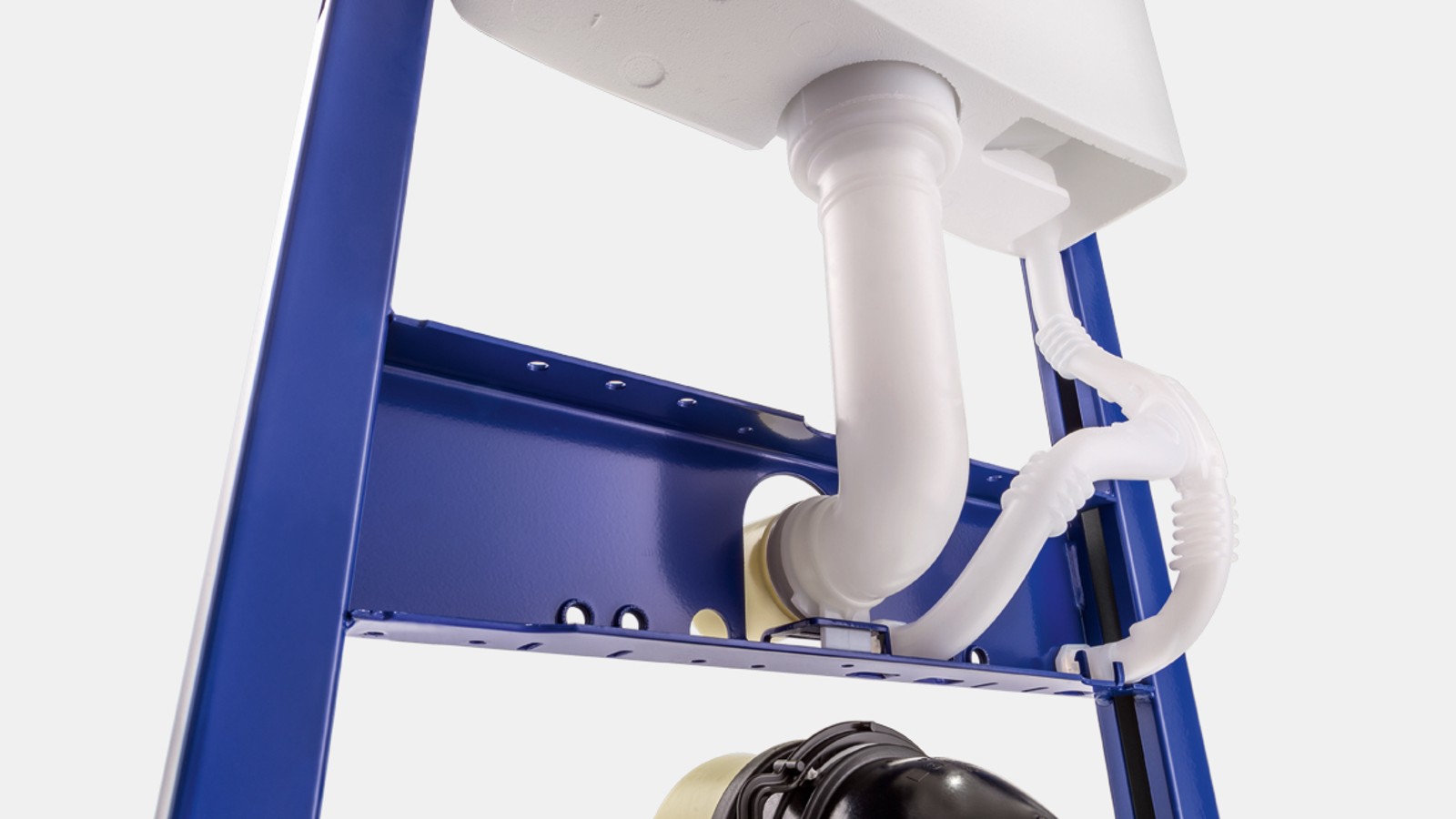

An electrical connection for the toilet should be set up early in the installation phase using the Geberit Power & Connect Box. All Geberit installation systems come with conduit pipes for an additional water supply connection.
This ensures that comfort functions, such as a shower toilet, odour extraction unit, orientation light, touchless flush plate or hygiene flush unit, are easy to retrofit. This also makes it easier to create accessible solutions and connect toilets to building automation systems.
How do I know which concealed cistern is installed behind the wall?
Plumbers can use the Geberit Pro app to quickly and easily identify which cistern is hidden behind the wall by either taking a photo of the flush plate with their phone or uploading an image of it.
'The app uses specific product features, such as the protection plate, to identify the model and displays suitable spare parts, conversion sets, installation manuals and other product details.
Can you install a Geberit cistern in drywall?
Yes, Geberit concealed cisterns are also suitable for drywall construction. You can use either Geberit Duofix or the Geberit GIS element to quickly and easily install Geberit cisterns in drywall construction.
What is the correct way to install a Geberit concealed cistern?
The installation manual describes the correct way to install a cistern and can be found in the Geberit product catalogue at any time. Installation videos are also available for many products.
Where can I find spare parts for Geberit concealed cisterns?
All available spare parts, such as fill valves and flush valves, can be found in the Geberit product catalogue. The Geberit Pro app helps professionals identify Geberit products and models on site using their smartphone. The app also gives you direct access to our digital product catalogue with product information, installation manuals and spare parts.
